EXPLORA SERIES

With the Explora by Vision X LED light bars, you no longer have to choose between a long or wide light pattern. Explora has unique reflectors, which provide a hybrid light beam, with both length and width, without any dark spots.

COMPETETIVE PERFORMANCE AT A COMPETITIVE PRICE

Explora by Vision X LED auxiliary lights are the next generation of lights developed by Vision X for Explora, which are brighter, better and easier than ever to illuminate the surroundings. The Explora series combines Vision X high quality with efficient LED diodes – to deliver driving light at an unbeatable price!
With the Explora by Vision X LED lights, you no longer have to choose between a long or wide light pattern. Explora has unique reflectors, which provide a hybrid light beam, with both length and width, without any dark spots.

With E-boost, you can selectively increase the power of the LED diodes, for additional brightness. But even without E-boost, the Vision X Explora delivers a powerful light with length and width.

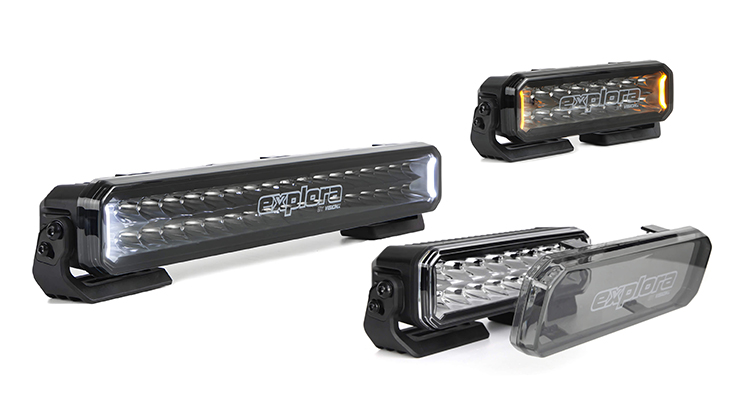

EXPLORA | DUAL ROW

• Unique reflectors that provide both width and length of the light
• E-marked driving lights with E-boost for extra effect
• Tasteful white or orange position light
• High durability with IP68/IP69K rating
• 5-year functional warranty from Vision X
• Driving light at an unbeatable price

EX-LB2.E8S.NH // Specifications
EX-LB2.E18S.NH // Specifications

EXPLORA - EX-LB2.E8S.NH

EX-LB2.E8S.NH
E-BOOST FUNCTION: YES
LENS: Clear
WATTAGE: 80W (16*5W)
RAW LUMENS: 5,680 lm
DISTANCE: 407M.
WIDTH: 56M.
WEIGHT: 1.32kg
IP RATING: IP68/IP69K
E-MARK: ECE R10, ECE R148, ECE R149
DIMENSIONS: 271/94/76,5mm

EXPLORA - EX-LB2.E18S.NH

EX-LB2.E18S.NH
E-BOOST FUNCTION: YES
LENS: Clear
WATTAGE: 180W (36*5W)
RAW LUMENS: 12,240 lm
DISTANCE: 638M.
WIDTH: 86M.
WEIGHT: 2.36kg
IP RATING: IP68/IP69K
E-MARK: ECE R10, ECE R148, ECE R149
DIMENSIONS: 531/94/76,5mm

EXPLORA | SINGLE ROW

EXPLORA - EX-LBE8S.NH

EX-LBE8S.NH
E-BOOST FUNCTION: No
LENS: Clear
WATTAGE: 40W (8*5W)
RAW LUMENS: 2,700 lm
DISTANCE: 284M.
WIDTH: 34M.
WEIGHT: 0.87kg
IP RATING: IP68/IP69K
E-MARK: ECE R10, ECE R148, ECE R149
DIMENSIONS: 268/71/63,5mm

EXPLORA - EX-LBE18S.NH

EX-LBE18S.NH
E-BOOST FUNCTION: YES
LENS: Clear
WATTAGE: 90W (18*5W)
RAW LUMENS: 6,120 lm
DISTANCE: 413M.
WIDTH: 50M.
WEIGHT: 1.45kg
IP RATING: IP68/IP69K
E-MARK: ECE R10, ECE R148, ECE R149
DIMENSIONS: 522/71/63,5mm

EXPLORA - EX-LBE28S.NH

EX-LBE28S.NH
E-BOOST FUNCTION: No
LENS: Clear
WATTAGE: 140W (28*5W)
RAW LUMENS: 9,500 lm
DISTANCE: 540M.
WIDTH: 60M.
WEIGHT: 2.03kg
IP RATING: IP68/IP69K
E-MARK: ECE R10, ECE R148, ECE R149
DIMENSIONS: 776/71/63,5mm

EXPLORA - EX-DLE40S

EX-DLE40S
E-BOOST FUNCTION: YES
LENS: Clear
WATTAGE: 80W (16*5W)
RAW LUMENS: 13,600 lm
DISTANCE: 480M.
WIDTH: 50M.
WEIGHT: 3kg
IP RATING: IP68/IP69K
E-MARK: ECE R10, ECE R148, ECE R149
DIMENSIONS: 221/225/102mm

EXPLORA - EX-DLXE24S

EX-DLXE24S
E-BOOST FUNCTION: YES
LENS: Clear
WATTAGE: 130W (36*5W)
RAW LUMENS: 8,160 lm
DISTANCE: 386M.
WIDTH: 40M.
WEIGHT: 2kg
IP RATING: IP68/IP69K
E-MARK: ECE R10, ECE R148, ECE R149
DIMENSIONS: 1861/186/85mm
